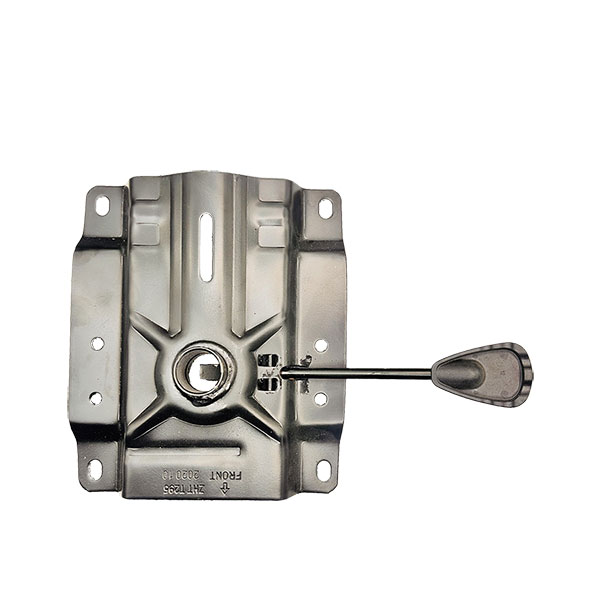

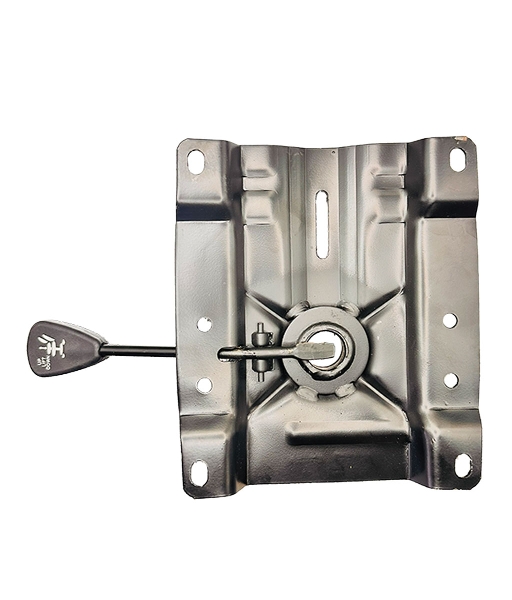

Stool Seat Plate with Lever for gas-lift operation, featuring reinforced steel construction, an integrated gas-lift release lever, and a 3° seat inclination. Ideal for adjustable seats, workshop stools, industrial seating and drafting stools, with slotted mounting holes for flexible seat installation and compatibility with suitable gas lift cylinders. Gas lift sold separately here.

Price:

NZ$ 30.00 including GST

NZ$ 26.09 excluding GST

UOM:

each

Product Code:

T295STRONGWELD

Features
Specifications
Associated Items

Strong pressed-steel seat plate for gas lift stools with reinforced construction, an integrated adjustment lever, and a built-in 3° front-to-back seat inclination that provides a slightly inclined seating position without needing a separate angled mounting component.
Integrated height adjustment: Combines the seat mounting plate and gas-lift operating lever into one assembly.
Rigid steel construction: The 3 mm pressed-steel plate provides a substantial mounting structure.
Defined seat inclination: The built-in 3° angle establishes the intended seat geometry.
Practical mounting dimensions: The slotted holes accommodate compatible seat mounting arrangements.
Versatile applications: Suitable for a range of adjustable stools and chairs, including workshop, industrial, and laboratory seating.

Seat Plate with gas-lift height adjustment lever for stools or fixed-back seats
Seat Plate Dimensions: 205mm wide x 235mm long x 3mm thick
Seat Plate Slotted Mounting Hole Centres: 170mm wide x 200mm long
Gas Lift Operation Lever: 218 mm from seat plate centre to lever end
3° Seat Inclination: front to rear
Gas Lift Bush 17/4 Taper
