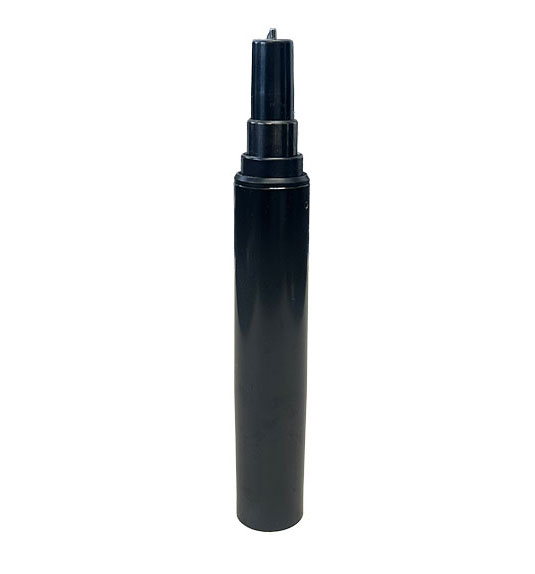

2-Stage Gas Lift Cylinder for Office Chairs
The 2-stage gas lift for office chairs offers an extended height adjustment range in a compact cylinder thanks to its telescopic construction. This gives the chair a wider range between its lowest and highest seating positions without requiring an excessively long cylinder or compromising stability.
Price:
NZ$ 73.44 including GST
NZ$ 63.86 excluding GST
UOM:
Each
Product Code:
SHSGL140-17HD/BL
Features
- Large height adjustment range with a low bottom seat position without compromising on stability.
- A generous stroke height in a relatively short cylinder length.
- Increases the chair's strength and stroke adjustability.
- Noise-free and smooth operation.
- Wobble-free!
Specifications

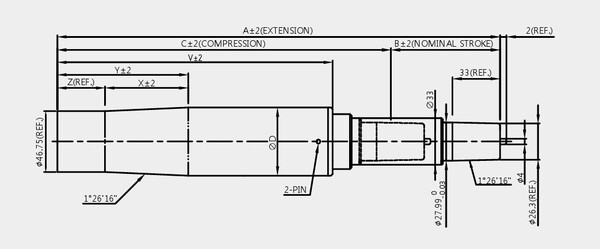

| Dimensions (mm) | ||||||||
| A | B | C | D(Φ) | V | Y | X | Z | *F1(N) |
| 386 | 129 | 257 | 50 | 205 | 91 | 56 | 35 | 350 |
*F1(N) is the force produced by the gas cylinder when it is in its initial, compressed position. It is essentially the force the gas lift applies to help raise the chair. F1 = 350 N means the gas spring produces approximately 350 Newtons of upward force under the manufacturer's test conditions. F1 is not the same as the chair's maximum user weight.
Stroke Height Adjustability: 129mm +/-
