65mm Metal Ball Castor - Select Attachment Fitting

Features

• Are you looking for a furniture castor that is durable and resistant to corrosion? Caford's robust metal castor wheels are made from zinc alloy, which is renowned for its tensile strength metal and corrosion resistance.

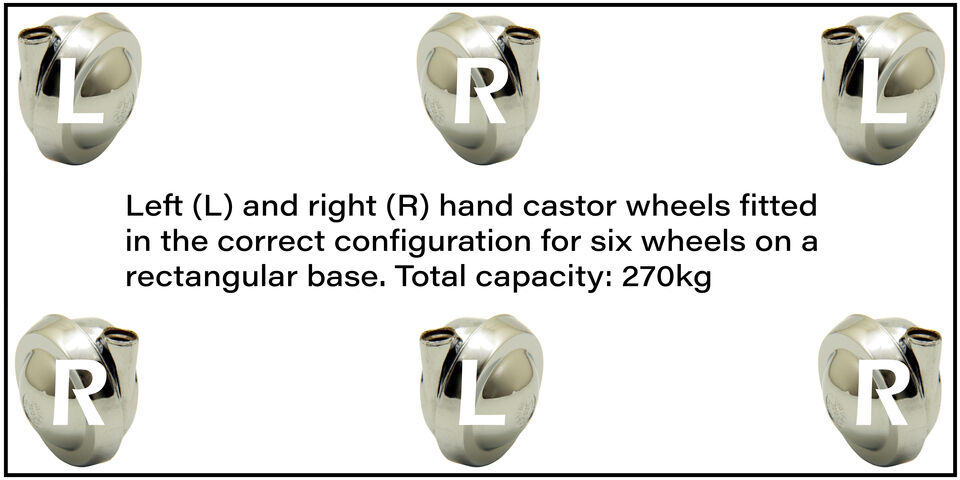

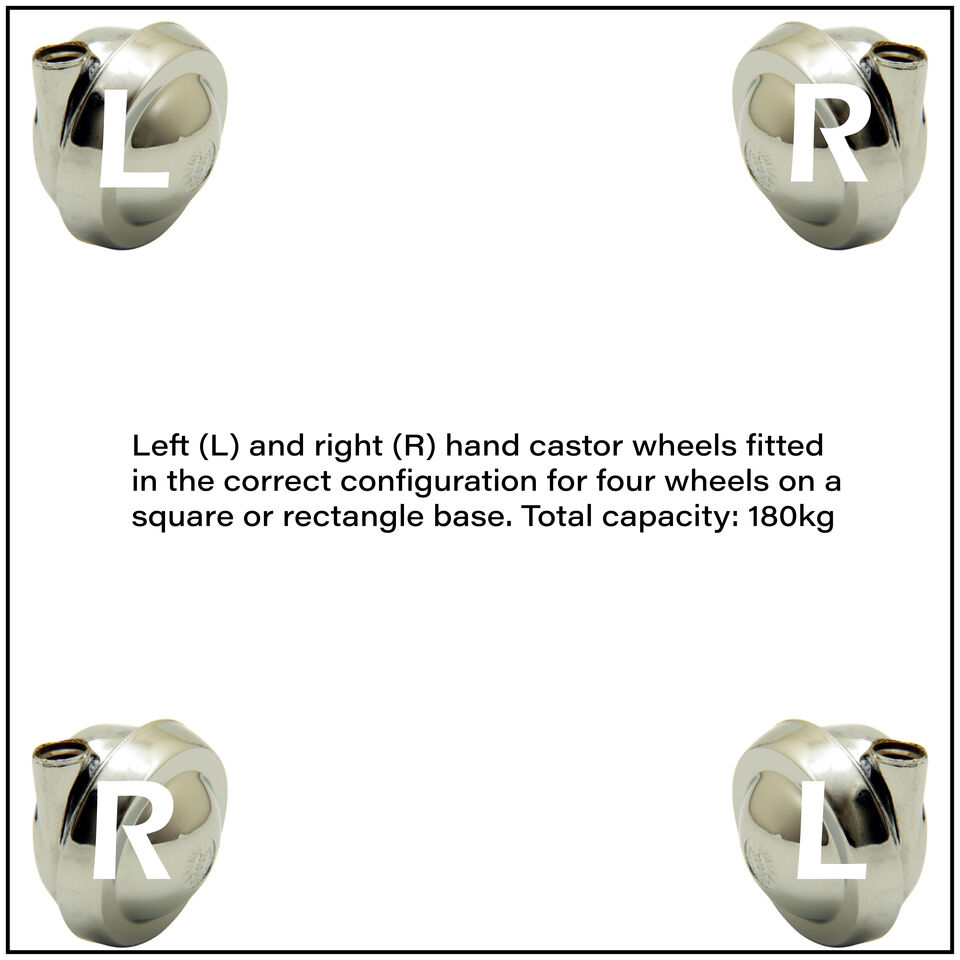

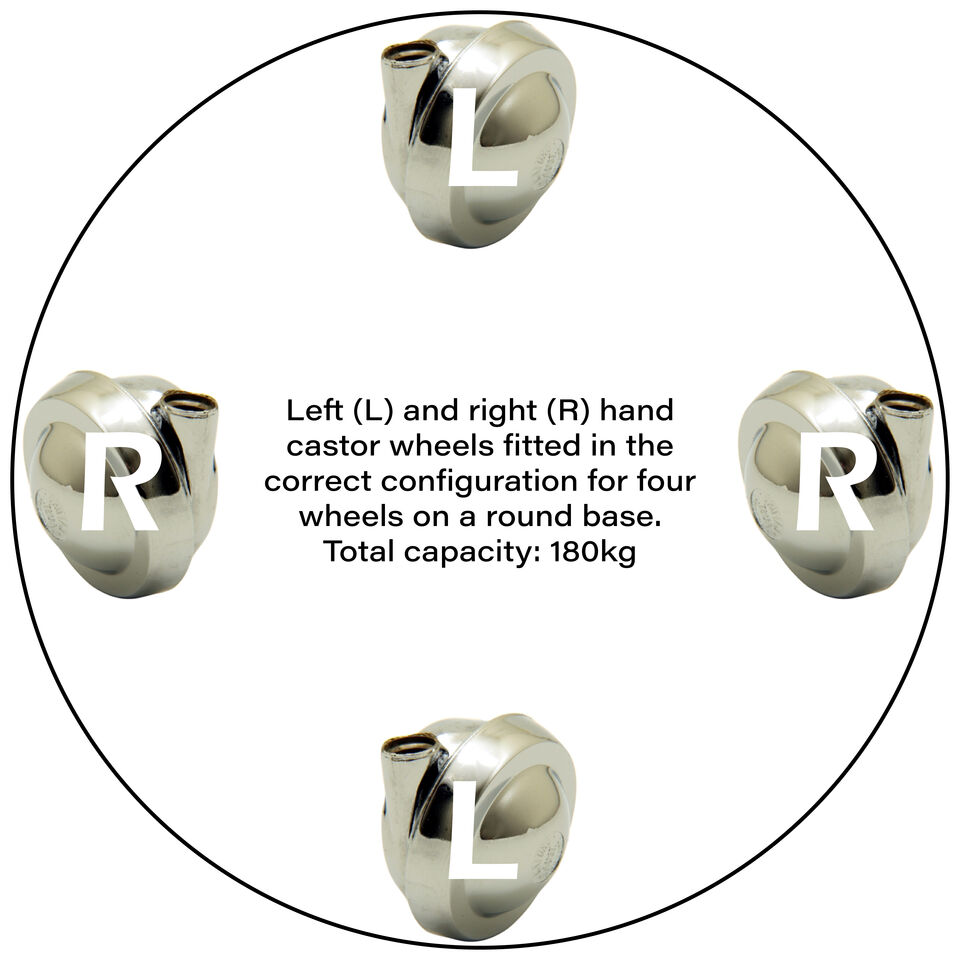

• Correct configuration of left and right wheels creates a straight tracking unit. Moreover, they come with 360-degree swivel functionality that provides precise manoeuvrability in any direction.
• These castors are ideal for adding mobility to trolleys and storage units and are popular with manufacturers for bed bases.
• You can select any attachment from our full range of fittings, which will best suit your furniture or equipment. (To select the fitting above, first click on the size/type of fitting required. Then, using the option dropdown box, select either left or right along with your preferred colour).
• Please refer to the "INFORMATION" tab for the correct configuration of the left and right hand wheels.

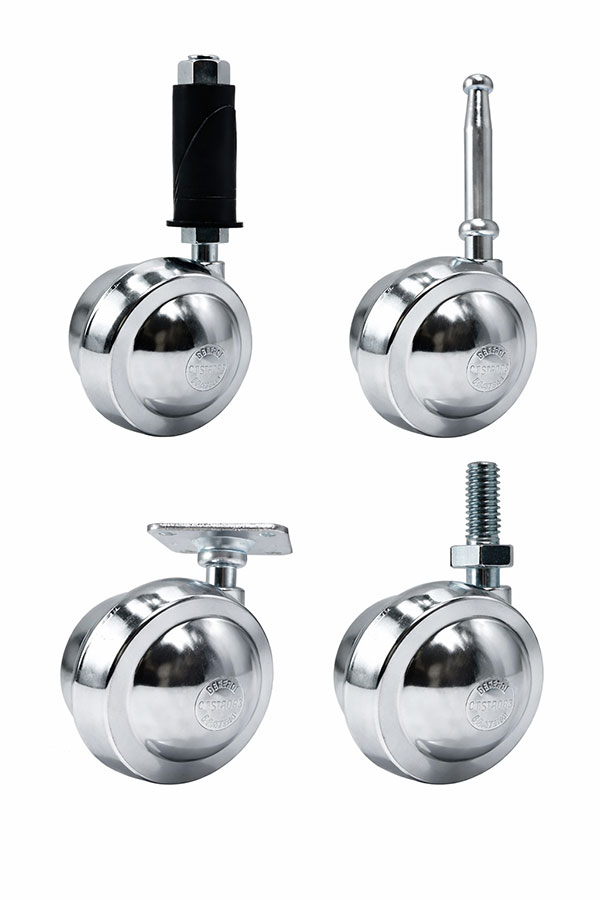

• We offer various fittings to choose from, which are listed below:

• Square Base Plate: It is suitable for furniture and equipment with a thin mounting surface that does not have enough depth for a castor and stem system to fit.
• Push-in Stem | Grip Neck: It is designed for furniture with tube or pipe legs or furniture legs and frames with minimal mounting space and a thick timber base to secure the socket connection.
• Threaded Stem: Available in three different thread measurements, providing a secure attachment to a thick timber base. One key benefit of the threaded castor fitting is that removing and replacing castors is easy if necessary.
• UNF Thread (for Expanding sockets): It is suitable for tube furniture legs or frames with expanding socket fittings. The beauty of an expanding socket fitting is its ability to work with a range of tube dimensions, so you do not need to search for an exact match. The expanding socket is sold separately or as a castor and socket set, which can be found under the "ASSOCIATED ITEMS" Tab.

• We offer the following imperial and metric threaded fittings:

• Imperial 3/8 BSW Thread: It screws into a matching 3/8 new or existing insert nut, tee nut, or rivet nut of the same 3/8 thread size.
• Imperial 5/16 BSW Thread: It screws into a matching 5/16 new or existing insert nut, tee nut, and rivet nut of the same 5/16 thread size.
• Metric M10 Thread: It screws into a matching M8 new or existing insert nut, tee nut, and rivet nut of the same M8 thread size.

• All our castors are available with connecting sockets, nuts, or screws, which you can find under the "ASSOCIATED ITEMS" tab.

Specifications

Castor Wheel Specifications:

• Wheel diameter: 65mm
• Wheel type: metal ball castor
• Mount height: 77mm
• Swivel radius: 55mm
• Load capacity: 45kg per castor

Fitting Options and Specifications:

Screw Plate Fitting:

• Type: Square base plate for screw fastening
• Application: The square base plate attachment is particularly suited to furniture with a thin mounting surface where a castor and pin stem system cannot be fitted.
• Plate Dimensions: 38mm
• Hole Diameter: 5mm
• Distance Between Hole Centres: 27mm
• Compatible Components: 8 gauge screws for mounting the baseplate to flat board and timber surfaces.

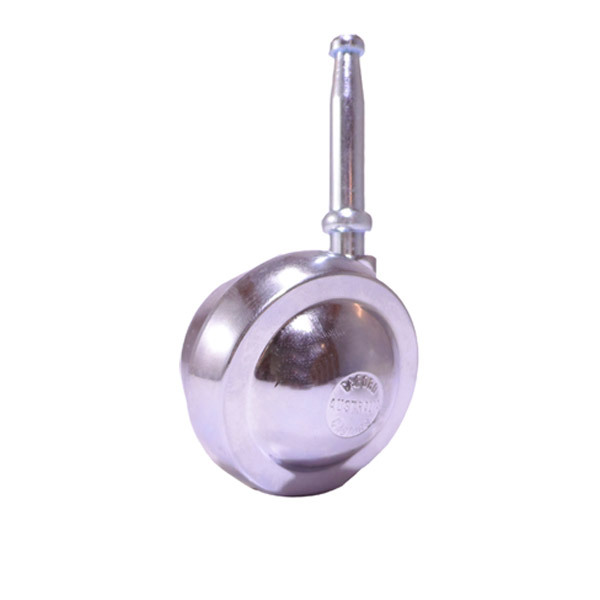

Grip Neck | Push-In Stem Fitting:

• Type: Push-in grip neck pintle stem #7
• Application: The perfect solution for fastening castor wheels to tube furniture legs on desks, tables, and trollies with minimal mounting space or inserted into furniture and equipment with a thick timber base.
• Compatible Components: #7 Pintle Sockets
• Round Nylon Sockets for Tube: Product Codes N5, N6, N7, N4, N10, N3, N13, N15 and N17.
• Round Nylon Sockets for Timber: Product Codes N5, N8 and N2.
• Square Nylon Sockets for Tube:Product Codes N1, N9, N14 and N18.
• Metal Grip Neck Socket for Timber: Product Code C730

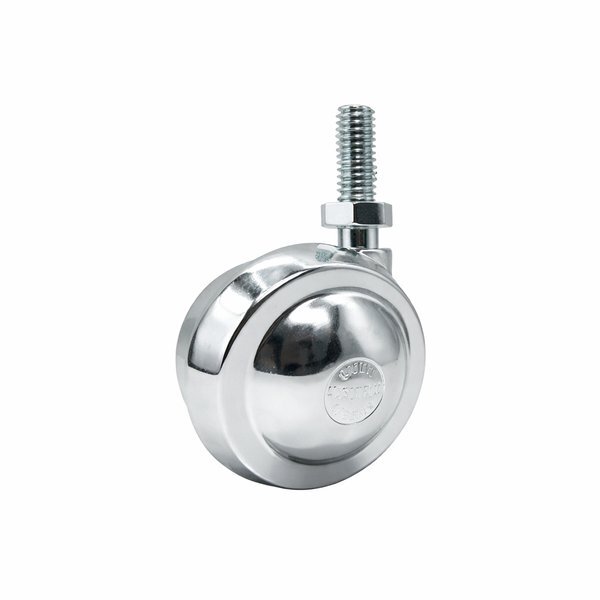

Screw-In Threaded Stem Fitting:

• Type: 20mm threaded stem
• Application: The main benefit of castors with a threaded rod or stem is their ease of replacement by simply unscrewing. Typically used to fix castor wheels to timber furniture frames on sofas, chairs, beds, and table legs
• Compatible Components: When replacing existing castor wheels, please ensure the connecting nut in your furniture has a matching thread.
• 5/16 Thread Screw-In Castor = 5/16 Texcert | Insert Nut with Flange, 5/16 bsw thread x 20mm long
• 3/8 Thread Screw-In Castor = 3/8 Texcert | Insert Nut with Flange, 3/8 bsw thread x 20mm long
• M10 Thread Screw-In Castor = M10 Texcert | Insert Nut with Flange, metric M10 thread x 20mm long

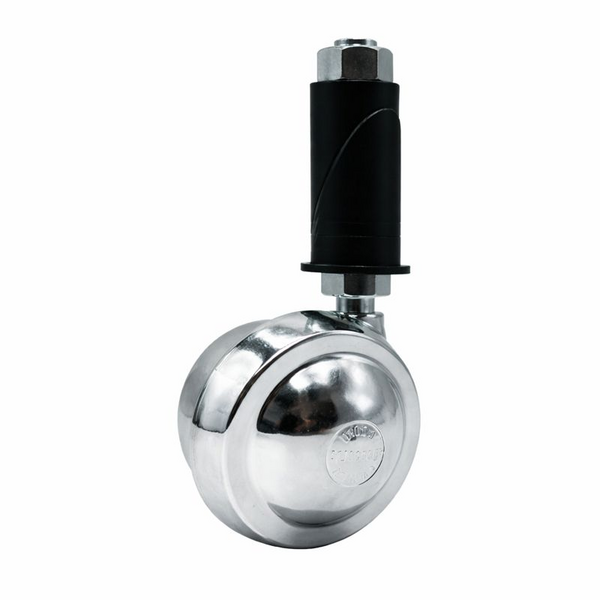

Expanding Socket Pin Threaded Stem Fitting:

• Type: 3/8 UNF x 50mm pin for Expanding Socket
• Application: the expanding socket pin threads into socket an expanding socket. Expanding sockets fit various tube sizes - to purchase a castor with an expanding socket click here.
• 25mm of the castor's pintle stem is threaded so that the castor screws into the expanding socket nut.
• Compatible Components: When replacing existing castor wheels, please ensure the connecting socket in your furniture has a matching thread.
• Important note: the 3/8 UNF is a fine-pitch thread with more threads per inch; it will not work with the 3/8 BSW.
• Round T1 Expanding Metal Socket: Oustide Diameter 19mm | Tube Thickness 0.9 - 1.6mm | Inside Diameter 17.2 - 15.8mm
• Round T2 Expanding Nylon Socket: Outside Diameter 22mm | Tube Thickness 0.9 - 1.6mm | Inside Diameter 20.2 - 18.8mm
• Round T3 Expanding Nylon Socket: Outside Diameter 25.4mm | Tube Thickness 0.9 - 1.6mm | Inside Diameter 23.6 -22.2mm
• Round T4 Expanding Metal Socket: Outside Diameter 32mm | Tube Thickness 0.9 - 1.6mm | Inside Diameter 30.2 - 28.8mm
• Square T8 Expanding Nylon Socket: Outside Diameter 25.4mm | Tube Thickness 0.9 - 1.6mm | Inside Diameter 23.6 - 22.2mm
• Square T9 Expanding Meatl Socket: Outside Diameter 19mm | Tube Thickness 0.9 - 1.6mm | Inside Diameter 17.2 - 15.8mm
