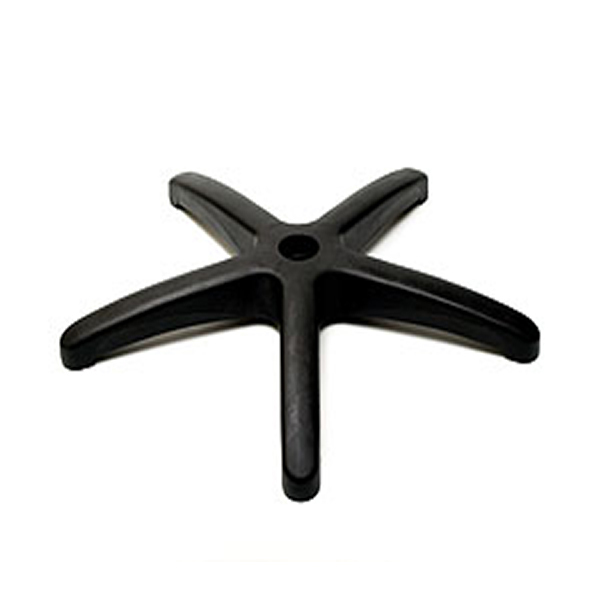

Cameo Chair Base - Black Nylon - 60cm Span

Specifications

• The Cameo Chair Base combines a strong and durable Nylon base with a 50mm Morse 3 Tapered Core for maximum stability, which will accept 50 or 50.8mm diameter gas cylinder columns.
• This 600mm Span Base can be fitted with any of our Morse 3 Tapered Gas Lifts.
• Accepts 11mm circlip chair base castor wheels and glides (refer to ASSOCIATED ITEMS Tab or the "Office Chair Base Castors & Glides" Category of this website):
  • Product code: CTW5038-77 - standard office chair castor wheel or upgrade to
  • Product code: TCTW5038PU-77 - with the soft grey tyre;
  • Product code: TCTW5038GBC-77BR - Soft tyre with auto-brake / brake unload (brake released when sat on);
  • Product code: TCTWRF5038-77PU - Load brake - brakes when sat on.
• What is a Morse 3 Tapered Core?

Morse Taper is an international measurement standard or reference for the 'taper' within the centre hole of office chair bases. This morse taper number 3 chair base (female part) matches the gas lift (male part) taper number 3. A tapered shape is wide at one end and narrower at the other to provide a secure and stable fitting of the chair's gas lift seat post within the centre hole in the base.
